Blending Skid

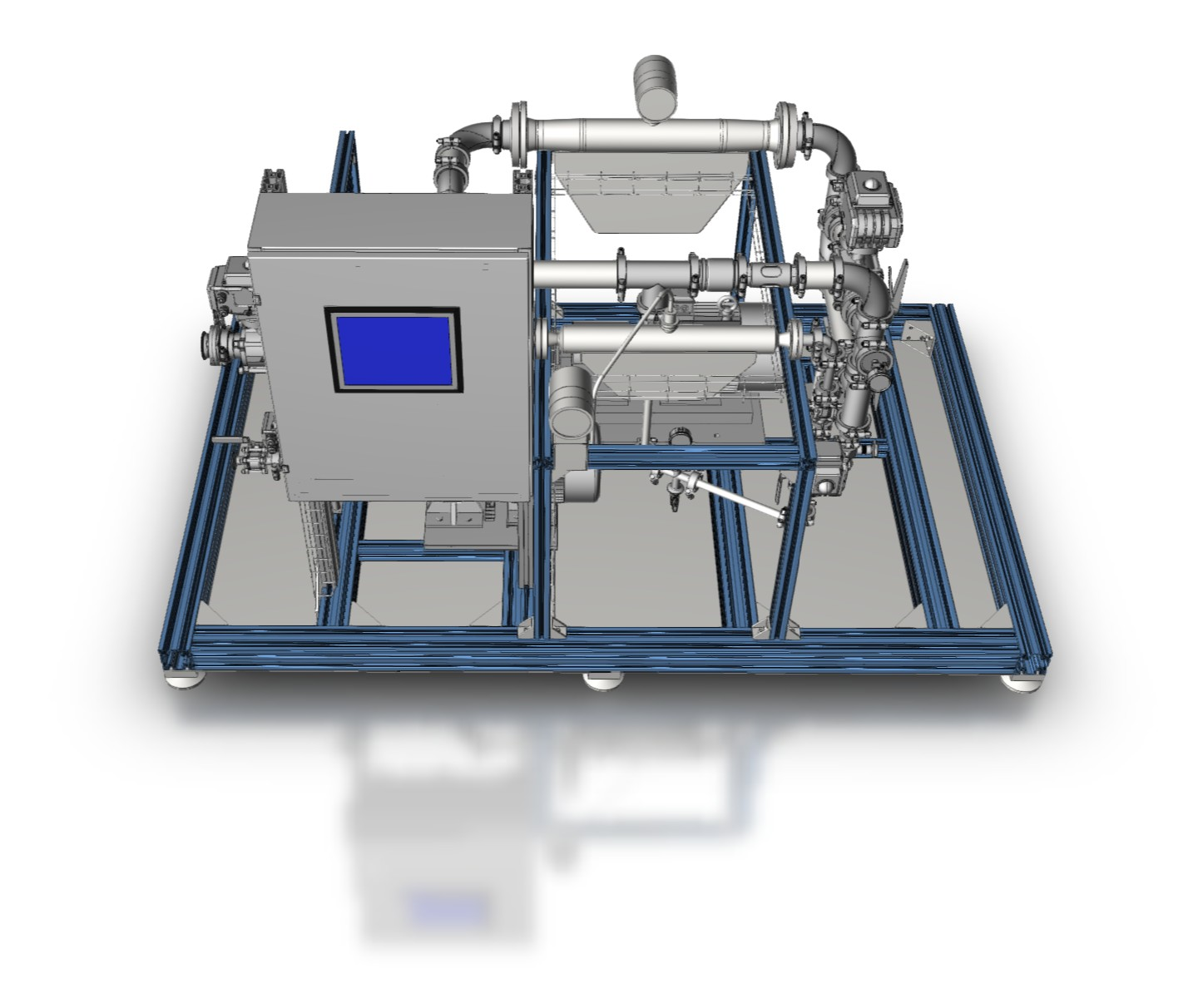

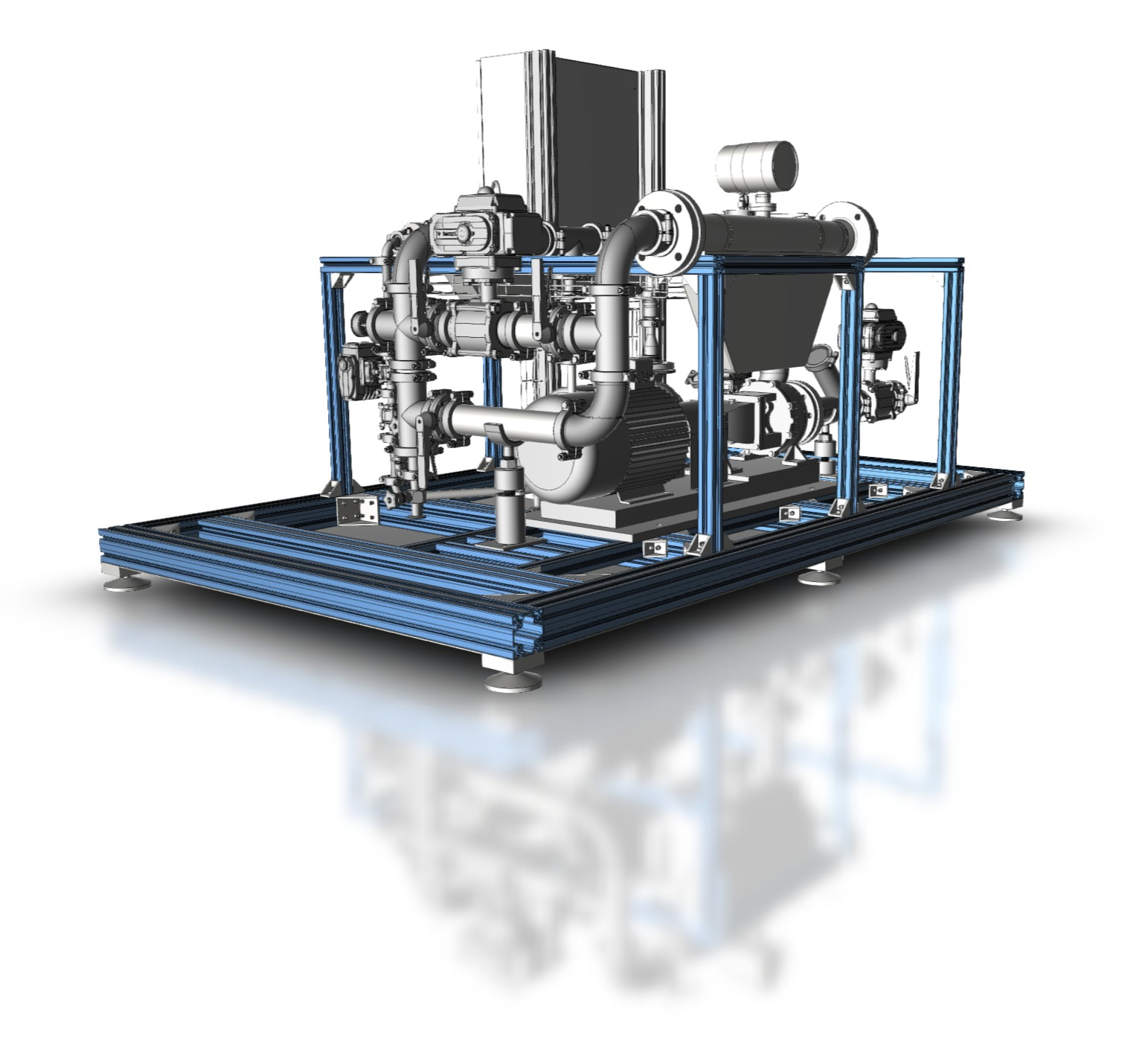

The blending skid is custom designed to transfer blended fuel in ratios ranging from 1% to 99%, fully complying with all local and federal fuel handling codes. It provides a self-contained, mounted, safe, and efficient solution for blending multiple fuel products. The system creates blended fuel using a predetermined recipe entered into the digitally controlled PLC (Programmable Logic Controller). Additionally, the blending skid can be designed to inject additives simultaneously during the blending process. Your system will meet all requirements for blended fuel truck loading, whether through bottom or top access fill points.

Each unit of equipment is developed based on the client’s technical requirements. It is integrated into existing production systems and can be projected as a turn-key solution. The equipment will be mounted within the structural frame of the blending system, which includes preinstalled piping, terminated tie-ins, flanged connections, and a main control panel with all necessary electrical wiring. All instruments will be calibrated and installed before shipping. To ensure proper handling, SRS may remove and individually pack sensitive items.

SRS systems typically ship as a single piece, excluding the control system when a customer requests remote location mounting at their site. The customer is responsible for unloading and installing the equipment upon arrival. SRS will provide detailed instructions with recommended procedures to assist with the installation.

Standard Blending Skid Design Specifications

• Flow Rate up to 400 GPM unless customer specifies the requirement for higher flow.
• Maximum Temperature of 350 F
• Maximum Pressure at 150 PSIG
• Outside Rated
• Explosion Proof Rated to both European and North America Electrical and fire requirements.
• Completely Self-sufficient Skid with clustered connections at end
• Fork Lift moveable as all items are on the skid
• Requires FEED pump of both Biodiesel and Diesel to be supplied by customer unless customer specifies other. Blending skid will control flow accurately

DOWNLOADABLE BROCHURE

Why Blend Biodiesel?

Fuel Skids with Modular Metering System – Bottom or Top Truck Loading

A Metering Skid offers a reliable solution for full custody transfer of fuel to your customer. This system delivers fuel at your determined flow rate and complies with all standard local and federal fuel handling codes. The Metering Skid loads fuel efficiently and safely to the truck via top or bottom access fill points. It can operate manually or be fully automated to suit your needs.

We can also integrate loading arm supports into the platform, eliminating the need for separate supports and foundations for the loading arms. Thanks to our innovative design features and modular construction, we consistently complete projects on time and under budget.

Fuel Skids with Modular Blending System – Bottom or Top Truck Loading

Your Fuel Blending Skid is custom-designed to provide custody transfer of blended fuel in ratios ranging from 1% to 99%, fully compliant with all local and federal fuel handling codes. The Blending Skid offers a self-contained, mounted, and efficient solution for blending multiple fuel products. The system blends fuel using a predetermined recipe entered into a digitally controlled PLC (Programmable Logic Controller).

For example, the Blending Skid can deliver fuel such as Plus (89 octane) gasoline with 10% ethanol by blending 87 and 93 octane gasoline and adding 10% ethanol. The system can also inject additives during the blending process. Your system will meet all requirements for blended fuel truck loading, whether via top or bottom access fill points.
