Reboilers, Condensers & Heat Exchangers

Critical Heat Transfer Equipment for Distillation Columns

Reboilers, condensers, and heat exchangers are essential components in every distillation system. They manage energy input and output, directly affecting efficiency, product quality, and operating costs.

Reboilers

Reboilers supply heat to the bottom of the column to generate vapor flow.

Type	Description	Best For
Kettle Reboiler	Pool boiling with large liquid holdup	Clean services, high vaporization
Thermosiphon (Vertical/Horizontal)	Natural circulation, no pump required	Most common, cost-effective
Forced Circulation	Pump-driven for viscous or fouling fluids	Heavy fouling services

Condensers

Condensers remove heat from overhead vapor and convert it back to liquid.

Type	Description	Best For
Total Condenser	All vapor is condensed to liquid	Most common applications
Partial Condenser	Produces both liquid and vapor products	When overhead product is vapor
Air-Cooled Condenser	Uses ambient air for cooling	Water-scarce locations

Heat Exchangers in Distillation

Type	Purpose
Feed Preheater	Recovers heat from product streams to preheat column feed
Intercondensers / Interreboilers	Intermediate heat addition/removal for energy optimization
Bottoms Cooler	Cools column bottoms product before storage

Distillation Column Reboiler

The Heart of Every Distillation System

The reboiler is one of the most critical components in a distillation column. It provides the heat necessary to generate vapor flow from the bottom of the column, creating the upward vapor traffic essential for effective separation.

Technical Specifications

Parameter	Typical Range
Heat Duty	0.5 MW – 30 MW
Operating Temperature	80 – 280°C
Design Pressure	Up to 30 bar
Heat Transfer Area	50 – 2,000 m²
Common Types	Kettle, Vertical Thermosiphon, Horizontal Thermosiphon, Forced Circulation
Heating Medium	Steam, Hot Oil, Fired Heater

Reboilers are carefully designed based on column vapor load, bottom composition, and available heating medium. Thermosiphon reboilers are most common due to their simplicity and reliability, while forced circulation types are selected for fouling or viscous services. Proper reboiler design ensures stable column operation, optimal energy efficiency, and long-term reliability.

Distillation Column Condensers

Converting Overhead Vapor into Liquid Product

The condenser is a vital component of every distillation column. It removes heat from the overhead vapor, converting it into liquid distillate (product) and reflux. Proper condenser design directly impacts product quality, energy efficiency, and column stability.

Technical Specifications

Parameter	Typical Range
Heat Duty	0.5 MW – 35 MW
Operating Temperature	40 – 180°C
Condenser Types	Total Condenser, Partial Condenser, Air-Cooled, Shell & Tube
Heat Transfer Area	50 – 2,500 m²
Cooling Medium	Cooling Water, Chilled Water, Air, Refrigerant
Reflux Ratio	0.5 : 1 to 10 : 1 (typical 1:1 to 5:1)

Condensers are available in many configurations. Total condensers are most common, producing fully liquid overhead product and reflux. Partial condensers are used when a vapor product is required. Air-cooled condensers are popular in water-scarce areas. Proper sizing and design ensure stable column pressure, efficient heat removal, and consistent product quality.

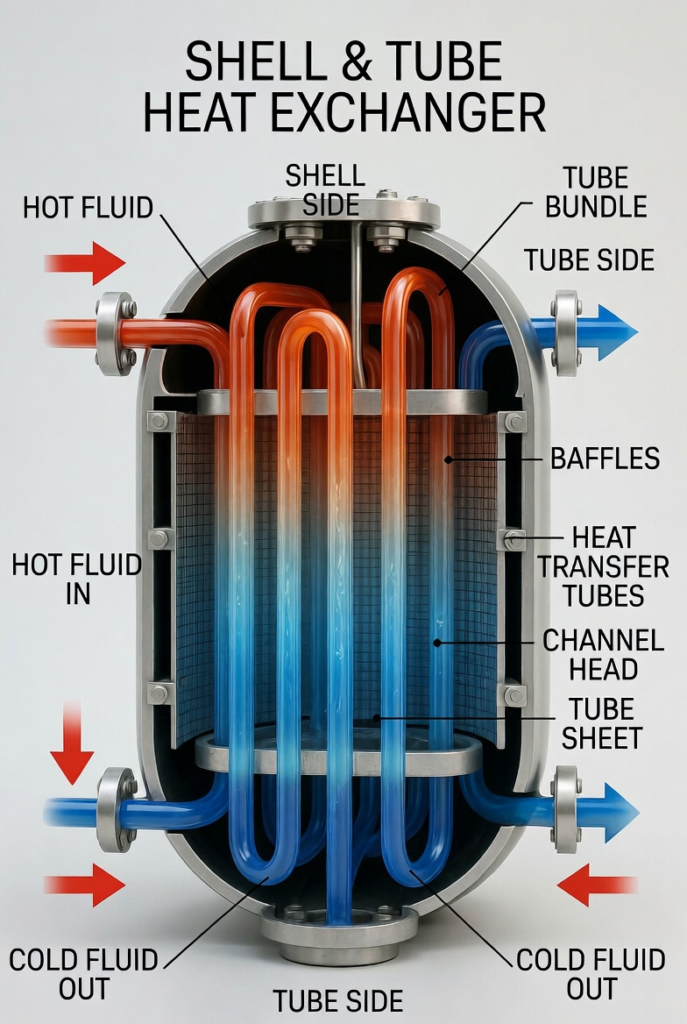

Shell and Tube Heat Exchangers

The Most Versatile and Widely Used Heat Transfer Equipment in Distillation

Shell and Tube Heat Exchangers are the workhorse of distillation systems. They are used as reboilers, condensers, feed preheaters, product coolers, and interchangers due to their robustness, flexibility, and ability to handle high pressures and temperatures.

Technical Specifications

Parameter	Typical Range
Heat Transfer Area	20 – 3,000 m² per unit
Design Pressure	Up to 100 bar (shell & tube side)
Design Temperature	-50°C to 450°C
Tube Material	SS 316L, Duplex, Titanium, Hastelloy, Carbon Steel
Common Configurations	Fixed Tube Sheet, Floating Head, U-Tube, Kettle Type
Heat Duty	0.1 MW – 40 MW

Why Shell & Tube Heat Exchangers?

Advantage	Description
High Versatility	Handles wide range of pressures, temperatures, and fluids
Easy Maintenance	Tubes can be cleaned or replaced individually
Proven Reliability	Standard design with decades of industrial service
Fouling Resistance	Suitable for dirty or fouling services
